Acri-Bond 200 is a high-performance, two-part methyl methacrylate (MMA) structural adhesive engineered for demanding industrial bonding applications. Designed for fast, reliable bonding of engineering plastics, metals, and composite materials, Acri-Bond 210 offers exceptional strength, durability, and ease of use.
With a simple 1:1 mix ratio and short open time of 4 to 6 minutes, this adhesive is perfect for production lines that need a fast cure. It allows for efficient assembly without the need for extensive surface preparation or primers. It is particularly suited for bonding thermoplastics, powder-coated metals, raw metals, and composite assemblies where high strength and impact resistance are critical.
Acri-Bond 200 delivers rapid strength development at room temperature, along with excellent toughness, fatigue resistance, and long-term durability. Its non-sag, thixotropic formula makes it ideal for precise application, even on vertical surfaces.
This adhesive is the go-to solution for industrial manufacturing, plastic fabrication, transportation, signage, and general assembly where consistent performance and structural integrity are required.
For production environments where standard fixture times are critical, Acri-Bond 210 offers the same performance and material compatibility as Acri-Bond 200 but with a longer working time of 14 to 17 minutes and a fixture time of 30 to 36 minutes.
Specifications
| Chemical Composition | Methyl Methacrylate |
|---|---|
| Appearance | Cream |
| Mix Ratio | 1:1 |
| Viscosity (CPS) | 40,000 – 60,000 |
| Max Gap Fill | 4mm |
| Working Time (min) @ 25°C | 4 - 6 |
| Fixture Time (min) @ 25°C | 14 - 17 |
| Full Strength | 24 hrs |
| Similar Product | Plexus MA300 |
| Operating Temperatures °C | -40 to 140 |
| Pack Size | 400mL |
| Shelf Life | 12 Months |
Materials Bonded and Applications
Acri-Bond 200 bonds to a variety of substrates they include but aren’t limited to
- Acrylic (PMMA)
- Polycarbonate (PC)
- Acrylonitrile Butadiene Styrene (ABS)
- Polyvinyl Chloride (PVC)
- Aluminium
- Steel
- Stainless Steel
- Powder Coated Surfaces
- Glass
- Concrete
- Fibreglass Reinforced Plastic (FRP)
- Carbon Fibre (CF)
- Wood
- MDF
Acri-Bond 200 will not adhere to plastics with a low surface energy such as Polypropylene (PP), Polyethylene (PE) or Polyolefins. These plastics can be structurally adhered to with Acri-Bond 206 and Acri-Bond Cyanoacrylates also have a great bond when using Acri-Bond Poly Primer.
Some applications of Acri-Bond 200 include:
- Transport Industry: Used to bond fibreglass (FRP), metal, and composites in vehicles like trucks, buses, trailers, and railcars.
- Marine: Bonds composite hulls, decks, and marine components with strong resistance to moisture and saltwater.
- Construction: Joins panels, facades, and modular building elements where strength and quick curing are critical.
- Signage and Displays: Bonds plastic, metal, and composite parts in signs and displays for indoor and outdoor use.
- Industrial Equipment: Used in machinery and appliance assembly for strong, impact- and vibration-resistant joints.
- Automotive: Bonding structural or cosmetic repair of body panels, including re-bonding fiberglass or composite components.
Versatility of Acri-Bond 200
While bond strength is important, it’s not the only factor to consider when selecting an adhesive. Once fully cured, Acri-Bond 200 delivers a range of additional benefits that can make a real difference depending on your application.
- When fully cured Acri-Bond 200 can be sanded, grinded, routed and polished to get your desired finish. You can even paint over it!
- Great Chemical Resistance
- High resistance to weathering
- Can be used in indoor and outdoor applications
- Waterproofing when applied correctly
- High Temperature resistance -40 to 140°C
Strength Test
| Substrate | Lap Shear Strength (psi) |
|---|---|
| Aluminium | 3400 CF |
| ABS | 2000 CF |
| Poly Carbonate | 1450 CF |
** SF, AF, CF – determine how the substrate failed.
- SF – Substrate Failure
- AF – Adhesion Failure
- CF – Cohesive Failure
Chemical Resistance
| Resistant to | Susceptible to |
|---|---|
| Hydrocarbons, Salt Solutions, Acids and Bases (3-10pH) | Polar Solvents, Strong Acids and Bases |
Available Sizes and Shelf Life
50mL Tubes – Perfect for precise applications and small projects.

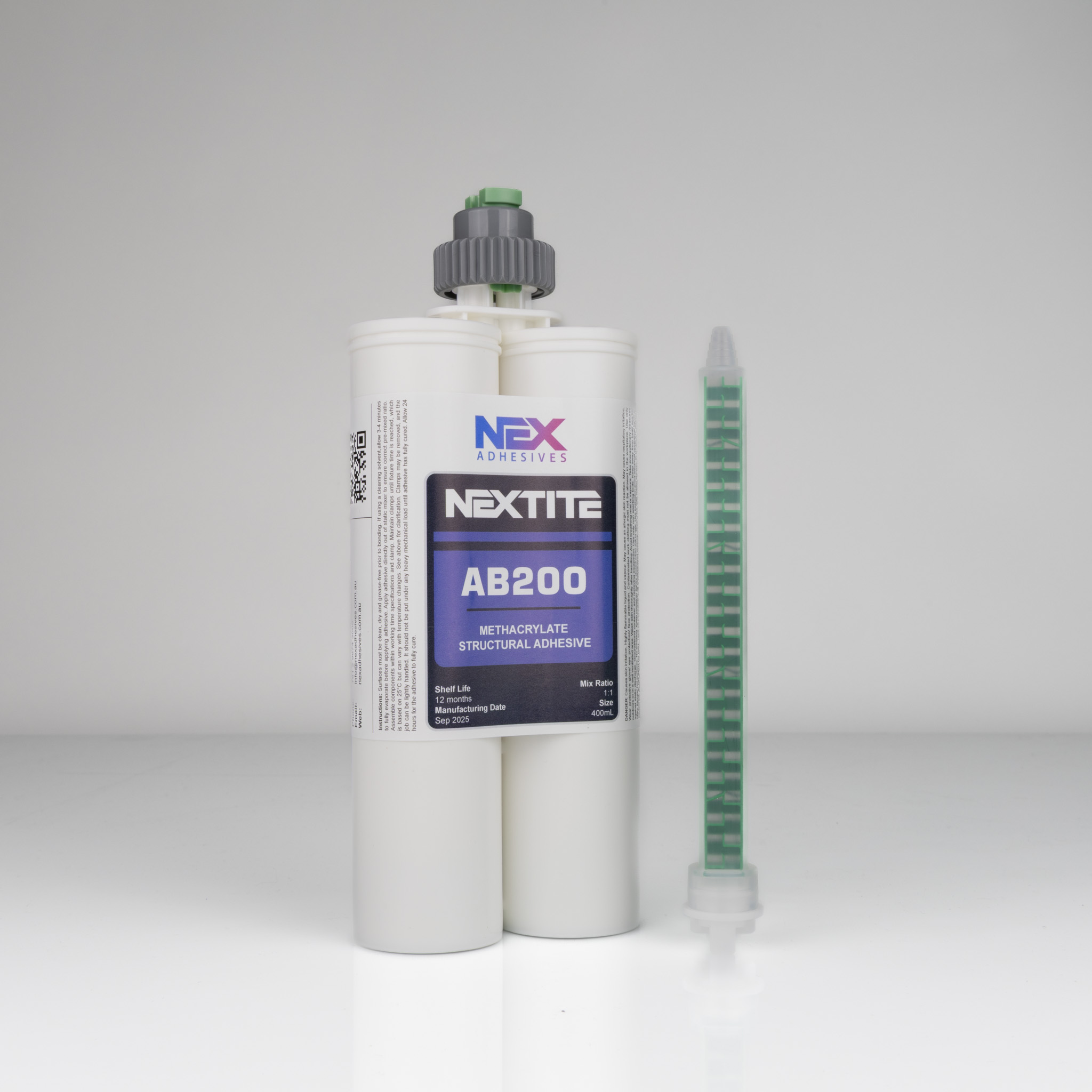

400mL Tubes – Ideal for high volume industrial use.
Shelf Life – 12 Months
Â
Instructions
Use a static mixer nozzle to accurately mix the contents of the 1:1 cartridge. Each cartridge includes one Static Mixer Nozzle Green 1:1, and you can purchase more in 10 packs from our store.
You will also require a 1:1 Static Mixing Dispenser to push the contents through the static mixer. This is the best way to apply it and get accurate, dependable results every time.
Parts to be joined should fit without forcing and be clean, it is recommended to use Acri-Bond Cleaner prior to applying any product to remove any oils, dust and dirt. It is important to let out any air bubbles by dispensing the first part of the cartridge onto some paper until the bubbles are gone. This is to make sure the two separate parts are fully mixed and is generally the first 2-3mL. Apply adhesive directly from the static mixer.
Press parts together in firm contact and use a clamp to secure while the glue reacts. Acri-Bond 200 will achieve a working strength within 14-17 min and full cure strength within 24 hours. You have approximately 4-6 minutes to work with the glue before it starts to set off.
Please check the TDS for material suitability and strength of each bond. For a tutorial how to use please refer to our YouTube Chanel or in the Videos tab above.
